Drone Authority · Owner guide · Legacy mapping camera drone

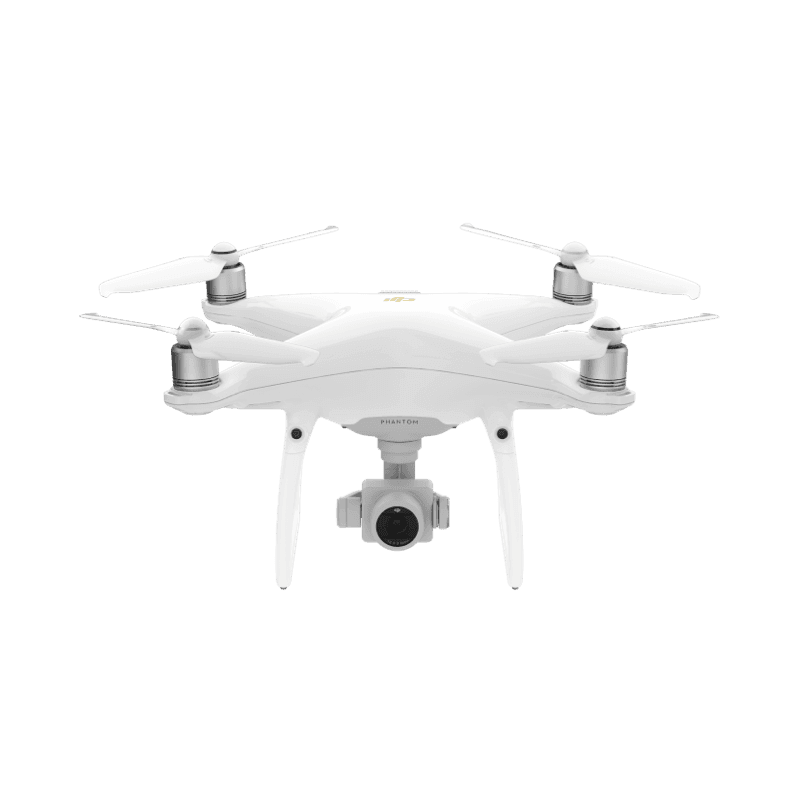

DJI Phantom 4 Pro V2.0
Built from official manuals, FAA records, current support pages, and model-specific compatibility checks. It is an ownership guide, not a hands-on review.
Ownership brief
Mechanical-Shutter LegacyExisting mapping and inspection owners who specifically need the mechanical shutter and can maintain a known V2.0 system.
Price band only. Official manufacturer page. We earn no commission.
- Typical price
- $700 - $1,500 used by controller and condition
- Category
- Legacy mapping camera drone
Owner desk
Legacy mapping platform and parts watchLiving with the Phantom 4 Pro V2.0.
Phantom 4 Pro V2.0 remains valuable where its one-inch mechanical shutter solves a real mapping problem. The owner case depends on a complete V2.0 controller set, healthy high-capacity batteries, current Remote ID firmware, DJI GO 4 support, and repairable airframe condition.
Configuration
Mechanical-shutter mapping legacy
Weight
Approximately 1,375 g
Legal configuration
Registration, Remote ID, and what changes them.
Payloads, strobes, mounts, guards, and nonstandard batteries can change balance, sensing, endurance, and propulsion. A mapping payload also needs a complete operational and data-quality test.
- Recreational
- Registration is required because the aircraft is over 250 g.
- Part 107
- Register the exact Phantom 4 Pro V2.0 serial in the Part 107 inventory before mapping, inspection, or other professional use.
- Remote ID
- The FAA lists an accepted Standard Remote ID declaration for Phantom 4 Pro V2.0. DJI specifies firmware V01.00.70.17; confirm the broadcast and exact serial in DroneZone before relying on it.
- Control stack
- DJI GO 4 with GL300L or GL300K V2.0 controller
First 30 minutes
Set it up before the launch site.
- 01
Charge and inventory the whole system
Charge the aircraft battery and the V2.0 GL300L or GL300K controller. Remove every transport protector, confirm the correct propellers, and inspect for shipping damage.
- 02
Activate in DJI Fly
Connect to the internet, activate the aircraft, bind any service plan, and complete every prompted aircraft, controller, and battery update before leaving home.
- 03
Set the safety envelope
Confirm return-to-home altitude, obstacle behavior, signal-loss action, units, storage location, and camera defaults. These are aircraft settings, not assumptions.
- 04
Prove the mapping chain
Test the mechanical shutter, focus, card, image timestamps, mission app, overlap settings, Remote ID broadcast, battery under load, and a small processing job before collecting production data.
Compatible kit
What to buy first.
Prioritize known-healthy 5870 mAh batteries, exact 9455S props, approved media, a rigid case, and the V2.0 controller. Buy mapping software and targets only after the aircraft and processing chain pass a test project.
What not to change
The original Phantom 4 Pro controller is not interchangeable with the V2.0 OcuSync controller. Verify batteries, props, filters, controller, firmware, mission-app support, and every airframe part against V2.0 specifically.
We have not verified any third-party exact-fit parts yet.
Nothing has passed our fit check for this model yet, so we are not going to guess. Use the official parts path below and check the model name on every flight-critical part. The wider store still carries field gear that never touches the aircraft.
Browse field gearMaintenance
What to check, and how often.
- Before every flight
- Inspect every propeller, motor bell, arm hinge, sensor window, and gimbal guard area. Replace a nicked or warped propeller instead of trying to straighten it.
- After dust, sand, salt, or moisture
- Power down, remove the battery, brush away loose debris, and let the aircraft dry fully. Do not use compressed air to drive grit into motors or gimbal bearings.
- Every 10 flights
- Review battery swelling, cell warnings, propeller screws, storage capacity, return-to-home altitude, and the app flight log.
- Before storage
- Let intelligent batteries manage themselves at room temperature, keep them out of a hot vehicle, and recheck charge state before the next job.
Troubleshooting
Common symptoms and what to check.
The aircraft drifts, will not hold position, or reports a compass warning
Move away from vehicles, reinforced concrete, speakers, and large metal objects. Confirm satellite status and follow the manufacturer calibration prompt only when the app asks for it.
Do not launch while position or compass warnings remain.
The horizon is tilted or footage vibrates
Remove the gimbal guard, inspect the gimbal dampers and propellers, clean the lens, and run the official gimbal calibration on a level surface.
Stop if the gimbal binds, chatters, or was struck hard enough to deform its mount.
Firmware update stalls or components show mismatched versions
Charge the aircraft and controller above the manufacturer minimum, keep every component powered and close together, use a stable network, and update each intelligent battery when required.
Do not fly through a version mismatch or repeated update failure. Use official support.
The aircraft and controller will not link
Confirm the controller is GL300L or GL300K for Phantom 4 Pro V2.0, inspect cables and antennas, match firmware, and follow the V2.0 linking procedure in DJI GO 4.
Do not substitute an original Phantom 4 Pro controller or launch through a partial link.
A mapping set shows blur, rolling geometry, or inconsistent overlap
Verify mechanical-shutter mode, focus, shutter speed, flight speed, altitude, interval, overlap, wind, card performance, and mission-app trigger behavior with a small processing sample.
Do not collect a full site until a sample block processes cleanly at the required ground sampling distance.
Official support
Manuals, firmware, parts.
Learn next
Where to go next.
- Registration checkerSee how weight, recreation, and Part 107 change the answer.
- First-flight checklistTurn setup into a controlled first launch.
- Can I fly here?Check airspace, authorization, TFRs, weather, and launch permission.
- Better aerial footageUse deliberate moves, exposure, and shot planning instead of relying on automation.
- Commercial drone softwareChoose capture, photogrammetry, GIS, and delivery tools from the mapping deliverable backward.
Published figures
- Weight
- 1,375 g
- Camera
- 1in, 20 MP mechanical shutter; 4K/60
- Sensing
- Five-direction sensing with mode limits
- Flight time
- 30 min published max
- Control
- V2.0 OcuSync controller or Pro+ V2.0 screen controller
- App
- DJI GO 4
Against the 250 g registration line
1,375 g
Above the line. Register this aircraft with the FAA before you fly it, recreationally or under Part 107, and meet Remote ID. Registration rules
Ownership strengths
- One-inch 20 MP camera with a mechanical shutter and 4K/60 capture
- Stable, visible airframe with a well-documented mapping history
- Official manuals, firmware archives, and DJI GO 4 setup guidance remain available
Best fit. Existing mapping and inspection owners who specifically need the mechanical shutter and can maintain a known V2.0 system.
Owner cautions
- Standard Remote ID requires the DJI-specified firmware and a verified broadcast
- Large aging batteries, rigid airframe, and scarce model-specific parts raise ownership cost
- V2.0 and original Phantom 4 Pro controllers are not interchangeable
Look elsewhere if. Standard Remote ID requires the DJI-specified firmware and a verified broadcast
What the DJI Phantom 4 Pro V2.0 is
Phantom 4 Pro V2.0 still earns attention for a one-inch mechanical-shutter camera that fits some photogrammetry work. The ownership case depends on exact V2.0 controller identification, battery health, parts availability, and the firmware-dependent Standard Remote ID path.
This page is organized around setup, legal configuration, exact-fit parts, maintenance, troubleshooting, and current official support. It is not presented as a hands-on Drone Authority review.
Shopping for the DJI Phantom 4 Pro V2.0?
Typical price $700 - $1,500 used by controller and condition. Check availability before you commit.
Compare with
DJI

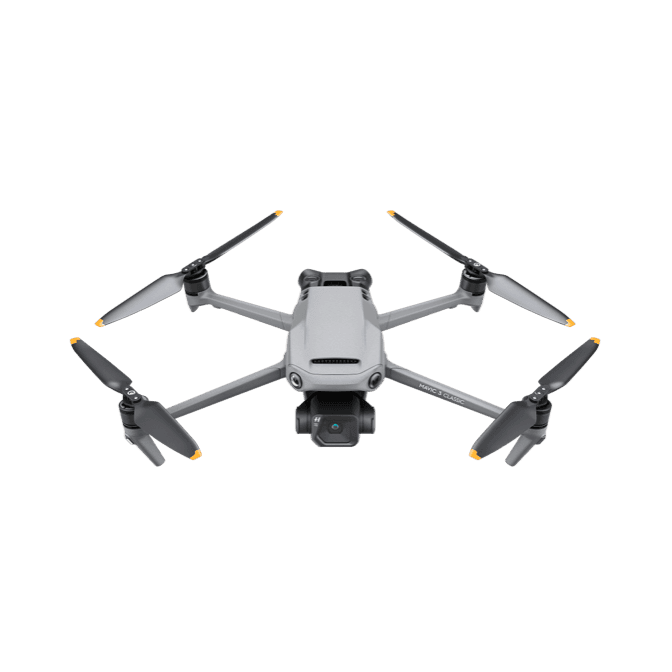

Mavic 3 Classic
Mavic 3 Classic keeps the Mavic 3 airframe and 4/3 Hasselblad main camera while removing the tele camera. That simplicity is its value and its main buying boundary.
Strengths
- Excellent 4/3 camera with adjustable aperture and 10-bit workflows
- Omnidirectional sensing and 46-minute published endurance
- Simpler camera system than the Mavic 3 Pro at a lower cost
Tradeoffs
- No optical tele camera
- Heavier and more expensive to operate than Air or Mini systems
- Camera-specific filters and gimbal protector do not follow every Mavic 3 variant
- Weight
- 895 g
- Camera
- 4/3 Hasselblad, 20 MP; 5.1K/50
- Aperture
- Adjustable f/2.8-f/11
- Flight time
- 46 min published max
- Control
- RC-N1, DJI RC, or RC Pro
- App
- DJI Fly
Best for: Pilots who want the Mavic 3 family's best main camera and safety platform without paying for tele cameras they will not use.
Amazon comes first when available. Official links stay visible for exact specs, stock, and manufacturer support.
DJI

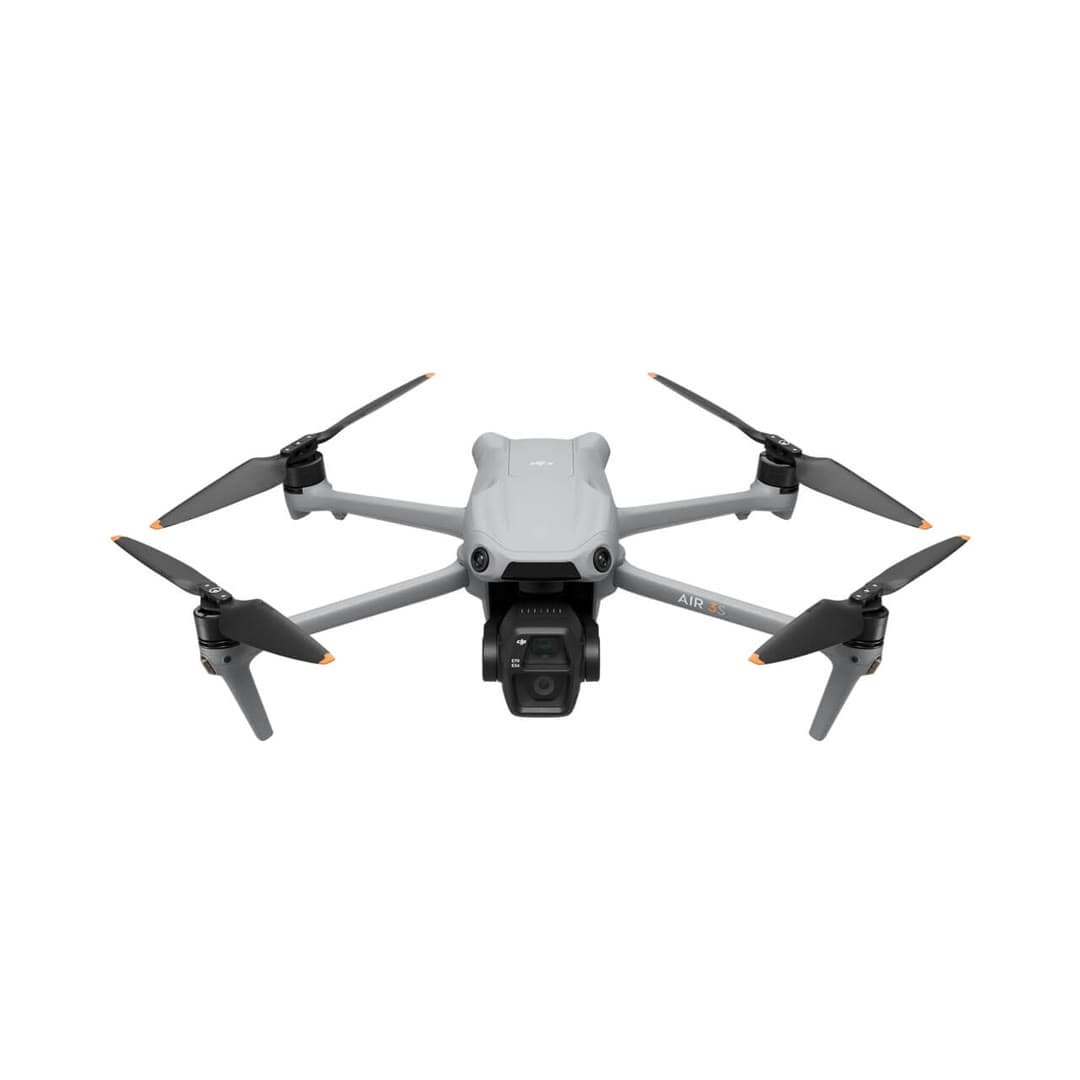

Air 3S
The everyday sweet spot of the DJI lineup: a 1-inch main camera plus a 70 mm telephoto, omnidirectional sensing with forward LiDAR, and a ~45-minute flight time: most of the Mavic's capability for roughly half the price.
Strengths
- Dual camera (1-inch wide + 70 mm tele) covers most real shots
- Long ~45-minute flight time and LiDAR-assisted obstacle sensing
- Far cheaper than the Mavic 4 Pro for everyday work
Tradeoffs
- Over 249 g, requires FAA registration
- Affected by the DJI import freeze; U.S. stock is finite
- Lacks the Mavic 4 Pro's 100MP Hasselblad and third tele lens
- Cameras
- 1in (24mm) + 70mm tele
- Flight time
- ~45 min
- Obstacle sensing
- Omni + forward LiDAR
- Transmission
- DJI O4
- Weight
- ~724 g (register)
- Wind resistance
- Level 5
Best for: Serious hobbyists and creators who want flagship-class results without flagship price.
Amazon comes first when available. Official links stay visible for exact specs, stock, and manufacturer support. We may earn a commission at no extra cost to you. Disclosure
Aircraft to operation
Before first launch
Buying the aircraft is one decision. Use this sequence to get from the box to a deliberate, legal first flight.
Aircraft under consideration
DJI Phantom 4 Pro V2.0
DJI Phantom 4 Pro V2.0: 1,375 g
- 01Check registration
Aircraft status
Set the registration path
DJI Phantom 4 Pro V2.0 is listed at 1,375 g. Plan on registration before launch. Part 107 registration is per aircraft.
- 02Start the airspace check
Launch location
Check the exact airspace
The aircraft does not decide whether a location is clear. Check the launch point, planned altitude, date, and time for controlled airspace, restrictions, and local launch rules.
- 03Check commercial requirements
Likely work aircraft
ConditionalClear the commercial requirements
DJI Phantom 4 Pro V2.0 is commonly considered for paid or business work. Confirm the pilot certificate, aircraft registration, Remote ID, airspace, and mission-specific requirements before quoting the job.
- 04Open the first-flight checklist
Props still off
Run the first-flight preflight
Confirm aircraft condition, firmware, battery health, controller link, home point, return-to-home settings, weather, people, obstacles, and the lost-link plan before takeoff.
How this guide is built
This guide draws on official manuals and support pages, FAA Remote ID records, published specifications, and compatibility data. It separates confirmed exact-fit parts from universal gear, and it does not imply we have flown the aircraft.
Affiliate relationships do not change our scores or rankings. Read the full affiliate disclosure.
