BETAFPV beta-tests a 4.60 g P1 HD flight controller for 1S whoops
The $69.99 integrated board and $74.99 nano goggle receiver are both sold out. Firmware matching, heat, and a camera-glare issue remain part of the beta.
By Joel Kelly
Decision brief
This is promising lightweight digital FPV hardware, not a finished recommendation. The integrated board removes separate video-transmitter wiring, but current testers must accept beta firmware, an unresolved camera issue, and hardware that is not in stock.
- Board weight
- 4.60 g
- Listed beta price
- $69.99
- Matched firmware
- v2.1.2
Excludes the camera and antenna
Beta samples are sold out
Ground station and air unit update
What is new
The flight controller, receiver, ESC, and HD video now share one 1S board.

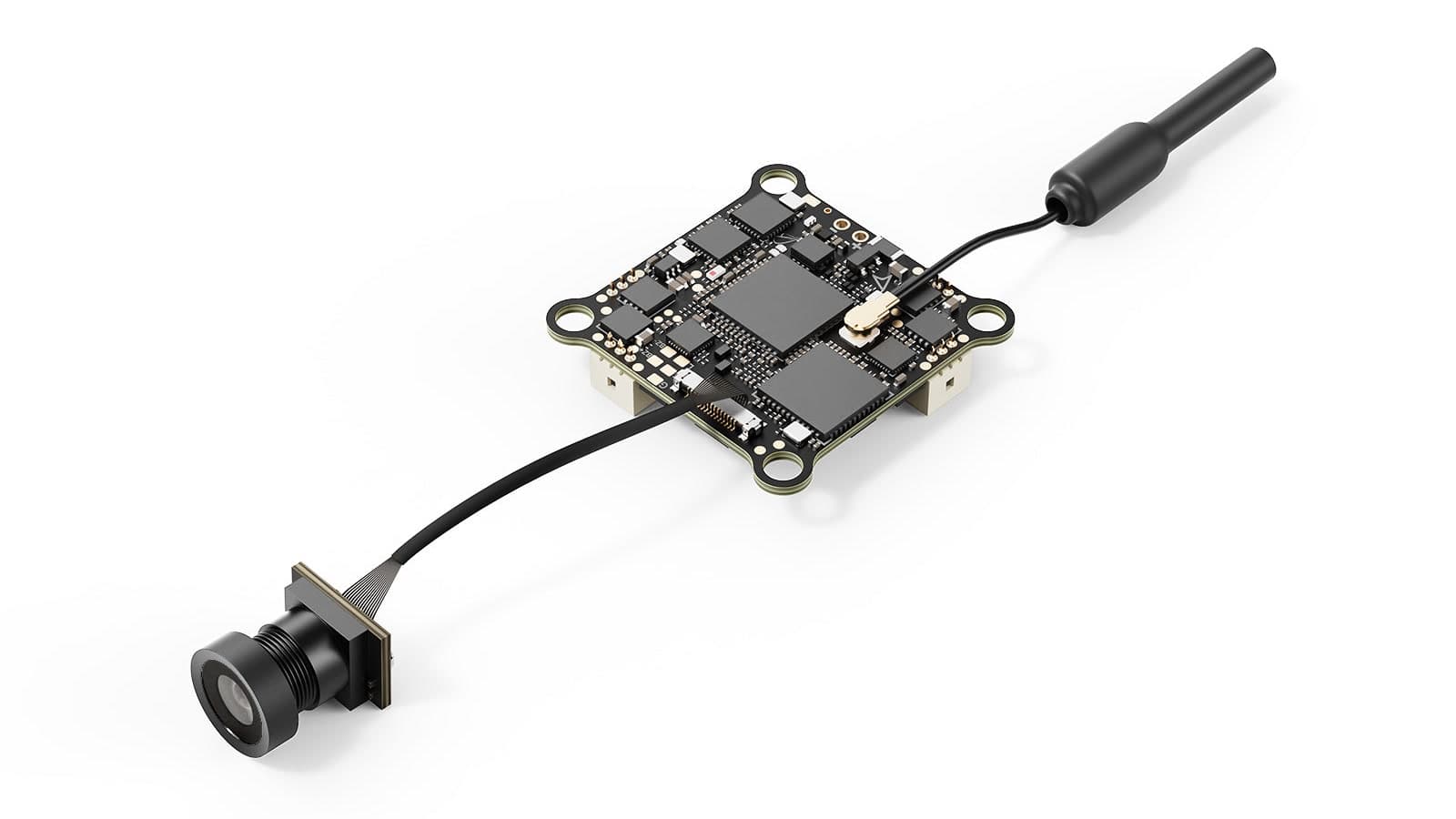

BETAFPV is beta-testing the Matrix 1S AIO P1 HD flight controller. The 4.60 g board combines an STM32G473 flight controller, 12A continuous ESC, serial ExpressLRS 2.4 GHz receiver, and P1 digital video transmitter. The company lists it at $69.99, but says the beta samples are sold out and existing orders will ship before a final version is released.
The matching camera adds 1.34 g. BETAFPV lists a 1080p feed at 60 frames per second, about 60 milliseconds of latency, and 200 mW transmission power. Those are manufacturer specifications from beta hardware, not independent flight-test results.
Use your current goggles
The nano receiver is the bridge, but it is beta hardware too.
BETAFPV is also testing a $74.99 P1 HD VRX Nano for compatible Fat Shark and SKYZONE goggles. Its beta samples are sold out too. That receiver lets some pilots keep their existing goggles instead of buying a complete P1 headset, but compatibility still depends on the exact goggle version and matched firmware.
Beta limits
Firmware matching, heat, and camera glare still need attention.
An August 26 support note tells testers to update the ground station and air unit to version 2.1.2 before using them together. The Matrix product page says boards arrive with air-unit firmware 2.1.1. It also warns that the camera can show red glare under some lighting and says not to leave a whoop powered without airflow because the video transmitter creates extra heat.
The useful idea is integration: fewer separate boards and less wiring in a weight-sensitive 1S build. The unanswered questions are final hardware, stock, image quality outside BETAFPV's own examples, thermal behavior, and whether the P1 ecosystem remains compatible across future firmware. Pilots who do not want to manage beta hardware should wait for the final board and receiver.
Practical read
Who should consider it
Strong fit
- Experienced 1S builders comfortable with beta firmware
- Weight-sensitive whoops that need fewer separate boards
- Fat Shark or SKYZONE owners checking exact P1 receiver compatibility
Account for
- Both beta products are currently out of stock
- Camera glare and thermal warnings
- Manufacturer specifications without independent flight testing
Source file
Verify the reporting
Continue on Drone Authority
Put the report to work
Continue this beat
More new releases reporting
Product watch · August 30, 2026

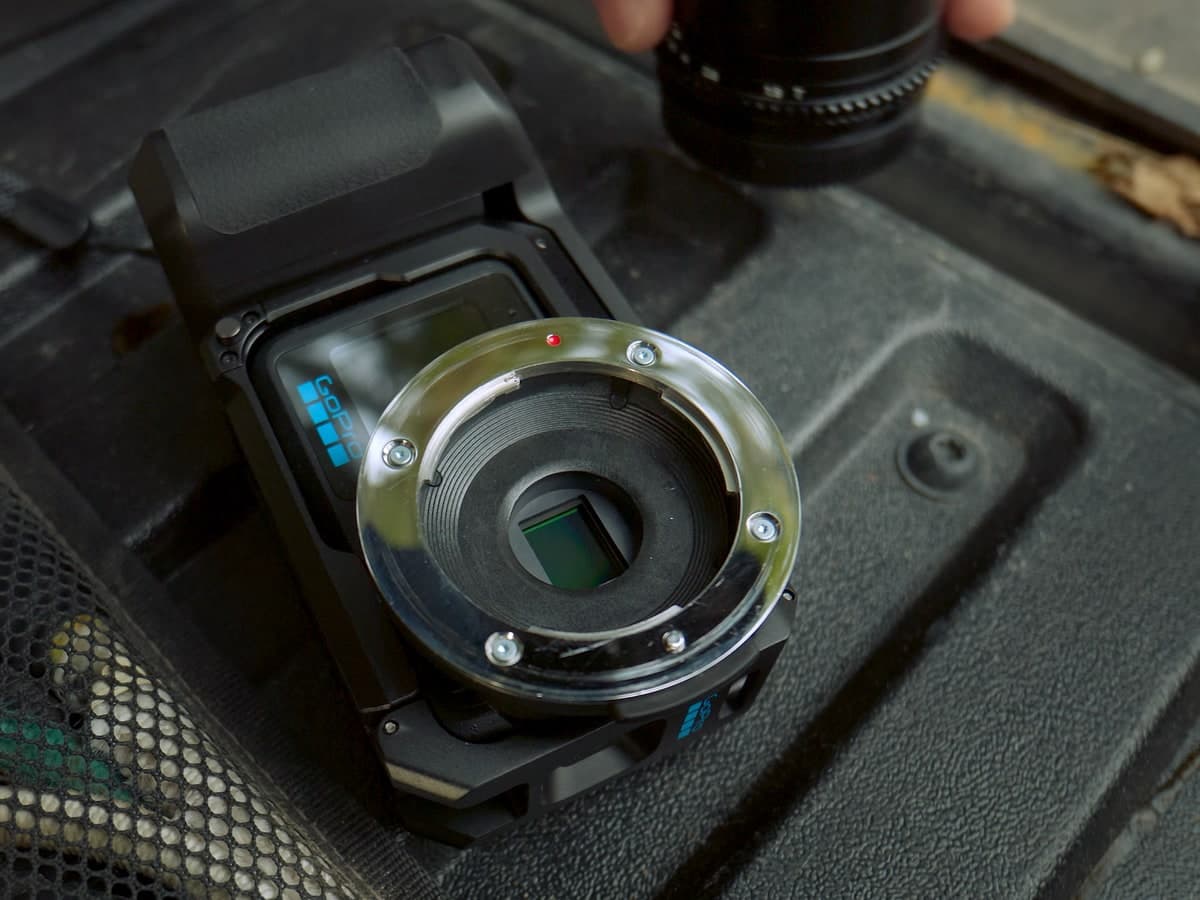

GoPro opens preorders for the 197 g Mission 1 Pro ILS
Industry · August 26, 2026

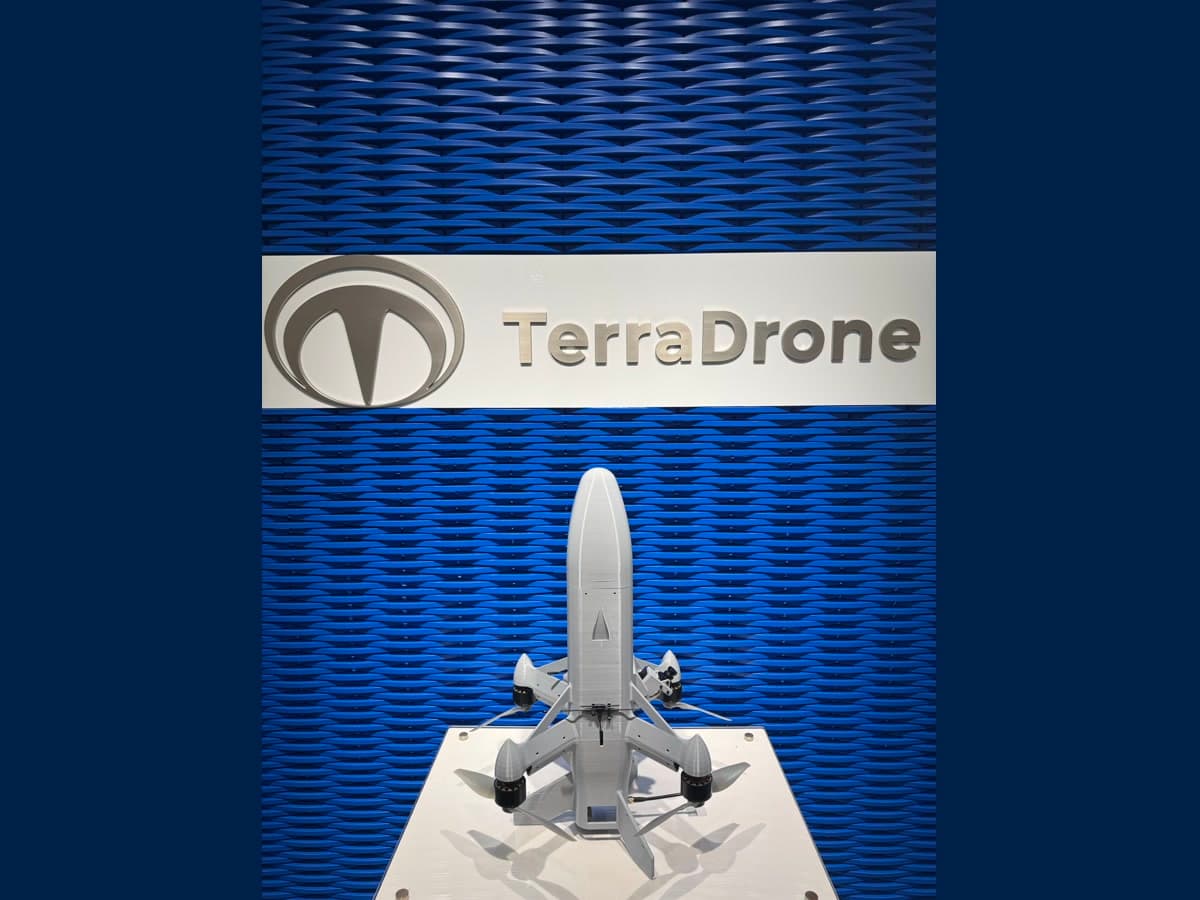

Japan signed a Terra B1 interceptor-drone production contract. Price and quantity remain undisclosed.
