Walksnail Avatar HD Goggles X
Built from published specifications and cross-checked against the sources listed at the foot of this page. We have not flown this aircraft ourselves.
The finding
Best for BuildersPilots building their own quads who want digital HD without DJI's closed ecosystem.
Price band only. Affiliate link: we may earn a commission at no extra cost to you. Disclosure
- Our score
- 8.4/10
- Typical price
- $430 – $500
- Category
- FPV goggles
Published figures
- Display
- Dual 1080p, 100 fps, 50° FOV
- Transmission
- Walksnail Avatar HD, ~10 km, 22 ms
- Inputs
- HDMI / AV in — works with analog via module
- Diopters
- -6.0 to +2.0, replaceable lenses
- Head tracking
- Built-in gyro
Drone Authority score
Editorial composite from researching Avatar HD Goggles X. Not a lab measurement, not an aggregate of retailer stars.
8.4/10
- Flight and cameraCapability for its lane
- Excellent8.6
- Owner sentimentCross-checked owner reports
- Strong8.2
- Build and reliabilityHardware and dependability
- Strong8.2
- ValuePrice against category peers
- Strong8.2
1080p/100fps digital HD with HDMI/AV input covering analog quads too.
In its favour
- Digital HD quality on custom-built freestyle and cinewhoop quads
- HDMI/AV input makes it a one-headset solution across systems
- Modular receiver keeps the goggles upgradeable
Buy it for this. Pilots building their own quads who want digital HD without DJI's closed ecosystem.
Against it
- Needs Walksnail VTX gear in the aircraft for the full digital experience
- Smaller ecosystem than DJI
Skip it if this matters. Needs Walksnail VTX gear in the aircraft for the full digital experience
The short answer
The Walksnail Avatar HD Goggles X are the headset for pilots who build: digital HD for Walksnail-equipped quads, HDMI and AV inputs that also cover analog whoops and the simulator, and a replaceable receiver module so the goggles outlive this year's video system.
What changes the decision
01
One headset across every rig
DJI's headsets are excellent and closed. The Goggles X take the opposite bet: dual 1080p/100fps displays and 22 ms latency on Walksnail's digital system, plus AV input for a 5.8 GHz analog module and HDMI for a sim or cinema feed. A builder with a digital 5-inch, an analog Tinywhoop, and a simulator habit needs exactly one headset.
Diopters run -6.0 to +2.0 with replaceable lenses, and the built-in gyro does head tracking for gimbals and fixed-wing. The catch is ecosystem depth: Walksnail VTX gear is required in each digital aircraft, and the parts market is smaller than DJI's.
02
Modular does not mean frictionless
Analog input needs a compatible external receiver module and mounting solution; HDMI devices need the correct cable and output mode. The Goggles X can cover more systems than a DJI headset, but each added system brings another module, cable, power lead, or menu switch. Buy the flexibility because you will use it, not because a longer port list looks reassuring.
Firmware matters more in an open system. Caddx's download center publishes manuals and updates for the goggles and air units, and pilots should keep both ends of the link on compatible versions. That maintenance burden is modest for builders and unnecessary for someone who only wants to fly one supported DJI aircraft.
Sources behind this review
Manufacturer specifications set the hardware claims. Independent reviews are used to test that positioning and surface the practical tradeoffs. We did not receive or fly a review unit.
- CaddxFPV: Walksnail Avatar HD Goggles X
Display, latency, input, and module specs cited above.
- CaddxFPV: Walksnail downloads
Official manuals, firmware, and extension-module documentation for the current system.
Before you choose
Do the Goggles X work with DJI drones?
Not with DJI's transmission. They are built for Walksnail digital systems, plus anything over HDMI or analog AV input.
Can one Goggles X headset cover analog and digital quads?
Yes, but analog requires an external 5.8 GHz receiver and a compatible mount or cable. Walksnail digital works natively, while HDMI input can accept a separate video source.
Ready to buy the Walksnail Avatar HD Goggles X?
Typical price $430 – $500. Check availability before you commit. Buy through this link and we may earn a commission at no extra cost to you. Disclosure.
Compare with

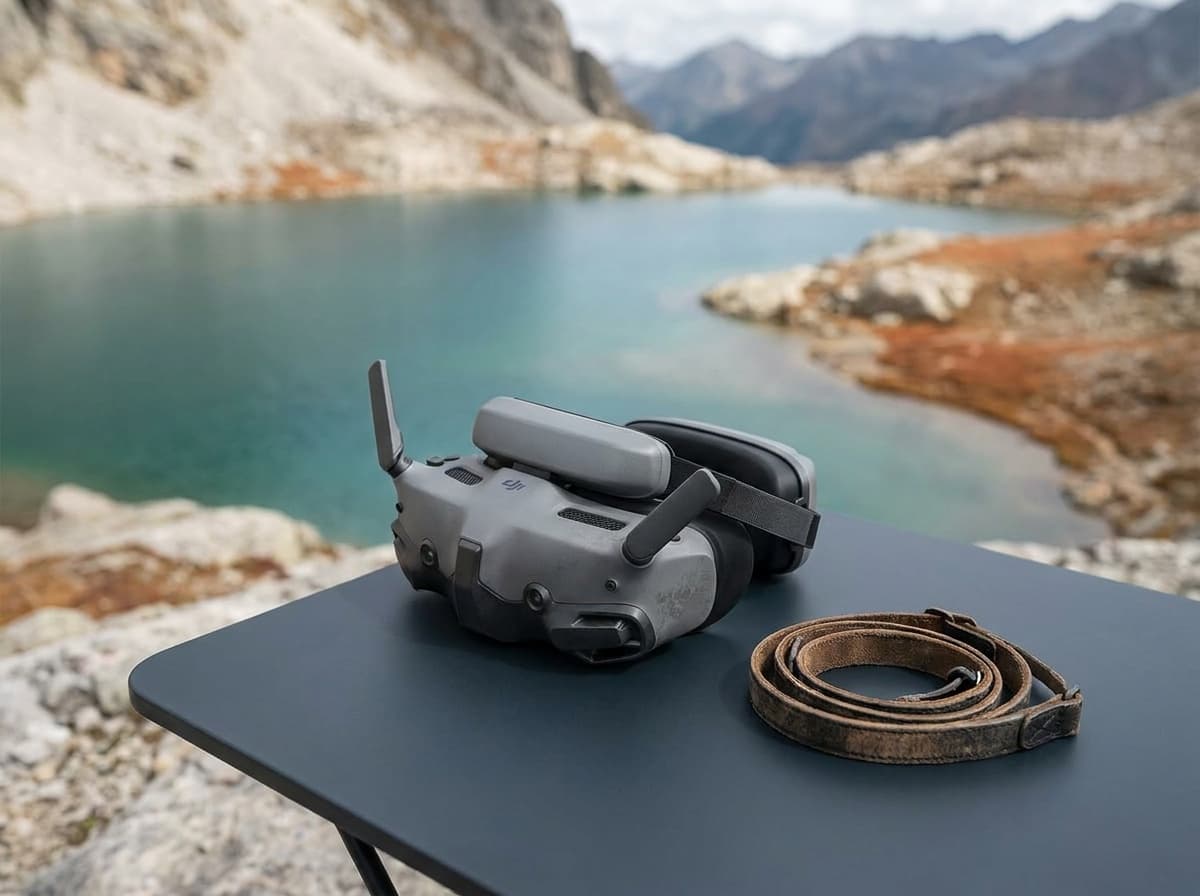

DJI
Goggles 3
DJI's flagship FPV headset: dual Micro-OLED screens, O4 digital transmission, built-in diopters, and Real View pass-through so you can check surroundings without lifting the goggles.
Strengths
- Best-in-class image quality and latency in the DJI ecosystem
- Built-in diopter adjustment — no prescription inserts needed for most
- Real View PiP pass-through is a genuine safety feature for VLOS discipline
Tradeoffs
- Locked to DJI's transmission ecosystem
- Premium price for casual pilots
- Display
- Dual 1080p Micro-OLED, up to 100 fps
- Transmission
- DJI O4, ~13 km max
- Diopters
- Built-in, -6.0 to +2.0
- Battery
- ~3 hr
- Works with
- Avata 2, Neo, Mini 4 Pro, Air 3/3S, O4 air units
Best for: DJI drone owners who want the best picture and the widest aircraft compatibility.
Amazon comes first when available. Official links stay visible for exact specs, stock, and manufacturer support. We may earn a commission at no extra cost to you. Disclosure

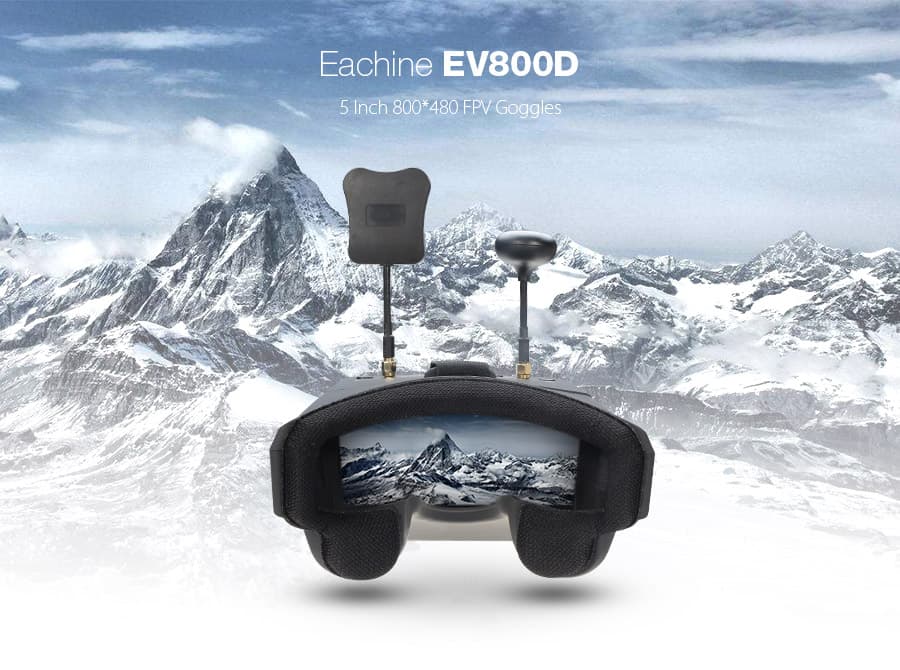

Eachine
EV800D
The long-running budget box goggle for analog FPV: a 5-inch screen, diversity receiver, and DVR in one cheap package. Not glamorous, but it gets a Tinywhoop pilot into the air for the price of a battery pack.
Strengths
- Cheapest reliable route into analog FPV
- Diversity receiver and DVR included
- Box design works for glasses wearers
Tradeoffs
- Standard-definition analog picture
- Bulky compared with slim goggle designs
- Display
- 5-inch 800×480 LCD (box style)
- Receiver
- 5.8 GHz 40CH diversity, built-in DVR
- Battery
- Built-in 2S
- Works with
- Any analog 5.8 GHz quad (Tinywhoops, budget builds)
Best for: First-time Tinywhoop pilots testing whether FPV is their hobby before spending real money.
Amazon comes first when available. Official links stay visible for exact specs, stock, and manufacturer support. We may earn a commission at no extra cost to you. Disclosure
Aircraft to operation
Before first launch
Buying the aircraft is one decision. Use this sequence to get from the box to a deliberate, legal first flight.
Aircraft under consideration
Walksnail Avatar HD Goggles X
- 01Check registration
Aircraft status
Set the registration path
Confirm Walksnail Avatar HD Goggles X's takeoff weight and your operating purpose. Recreational and Part 107 flights follow different registration paths.
- 02Start the airspace check
Launch location
Check the exact airspace
The aircraft does not decide whether a location is clear. Check the launch point, planned altitude, date, and time for controlled airspace, restrictions, and local launch rules.
- 03Check commercial requirements
Only when it is work
ConditionalDecide whether Part 107 applies
A small drone does not create a business-use exception. If the flight serves a client, employer, listing, monetized project, or another non-recreational purpose, check the Part 107 path first.
- 04Open the first-flight checklist
Props still off
Run the first-flight preflight
Confirm aircraft condition, firmware, battery health, controller link, home point, return-to-home settings, weather, people, obstacles, and the lost-link plan before takeoff.
How we score
The score is an editorial composite of four axes: flight and camera capability, owner sentiment drawn from published reviews, build and reliability, and value for the money. It reflects research and cross-checking rather than lab measurement, and we do not invent star counts. Prices are typical U.S. street bands and move around, especially for DJI while the import freeze lasts.
Affiliate relationships do not change our scores or rankings. Read the full affiliate disclosure.
